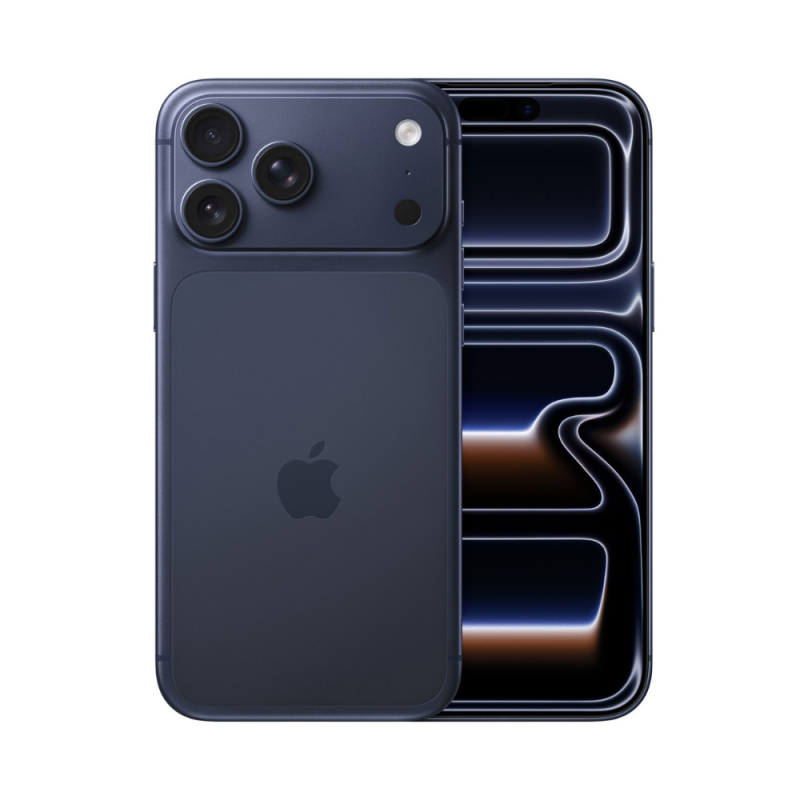

iPhone 17 Pro Max

📅 Launch

• Announced: September 9, 2025

• Released: September 19, 2025

🏗️ Body

• Dimensions: 163.4 x 78.0 x 8.75 mm

• Weight: 233 g (8.22 oz)

• Build: Aerospace-grade Aluminum Unibody, Ceramic Shield 2 front (3x more scratch-resistant), and Ceramic Shield back (4x better crack resistance).

• SIM: Dual eSIM (US models); Nano-SIM and eSIM (International).

• Controls: Action Button + Camera Control (Sapphire-covered tactile button with force sensor).

• Resistance: IP68 dust/water resistant (up to 6m for 30 mins).

📺 Display

• Type: LTPO Super Retina XDR OLED, 120Hz ProMotion, HDR10, Dolby Vision.

• Size: 6.9 inches (91.6% screen-to-body ratio).

• Resolution: 2868 x 1320 pixels (~460 ppi density).

• Features: 3000 nits peak outdoor brightness, Always-On display, 1 nit minimum brightness, and a new anti-reflective coating.

⚙️ Platform

• OS: iOS 26 (Current: iOS 26.3.1).

• Chipset: Apple A19 Pro (3 nm).

• CPU: Hexa-core (2x performance + 4x efficiency).

• GPU: 6-core Apple GPU with Neural Accelerators built into each core.

• Thermal: Vapor Chamber cooling system laser-welded into the chassis for 40% better sustained performance.

💾 Memory

• Internal: 256GB, 512GB, 1TB, 2TB.

• RAM: 12GB RAM (LPDDR5X).

• Storage Type: NVMe.

📸 Main Camera

• Triple Setup (All 48MP) + LiDAR:

  • 48 MP Fusion (Main): f/1.78, 24mm, 2nd-gen sensor-shift OIS.

  • 48 MP Ultrawide: f/2.2, 13mm, 120° FoV, Hybrid Focus Pixels for Macro.

  • 48 MP Telephoto: f/2.8, 100mm (4x optical zoom), 3D sensor-shift OIS.

• Zoom Range: 0.5x, 1x, 2x, 4x, and 8x optical-quality zoom (via 48MP sensor crop). Digital zoom up to 40x.

• Video: 4K@120fps Dolby Vision, Log video, ProRes, and Genlock support.

🤳 Selfie Camera

• Single: 18 MP Center Stage, f/1.9, Autofocus.

• Feature: Square sensor for “Dual Capture” (simultaneous front/rear 4K recording) and automatic reframing.

🔋 Battery & Charging

• Type: Li-Ion 5088 mAh (The largest battery ever in an iPhone).

• Performance: Up to 39 hours of video playback.

• Charging: 40W fast wired (50% in 20 min), 25W MagSafe/Qi2, 4.5W reverse wireless charging.

📡 Communications & Features

• WLAN: Apple N1 chip (Wi-Fi 7, Bluetooth 6.0, Thread).

• Modem: Qualcomm Snapdragon X80.

• Security: Memory Integrity Enforcement (MIE) — hardware-level protection against advanced spyware.

• AI: Full Apple Intelligence suite with advanced local language models and “Visual Intelligence.”
