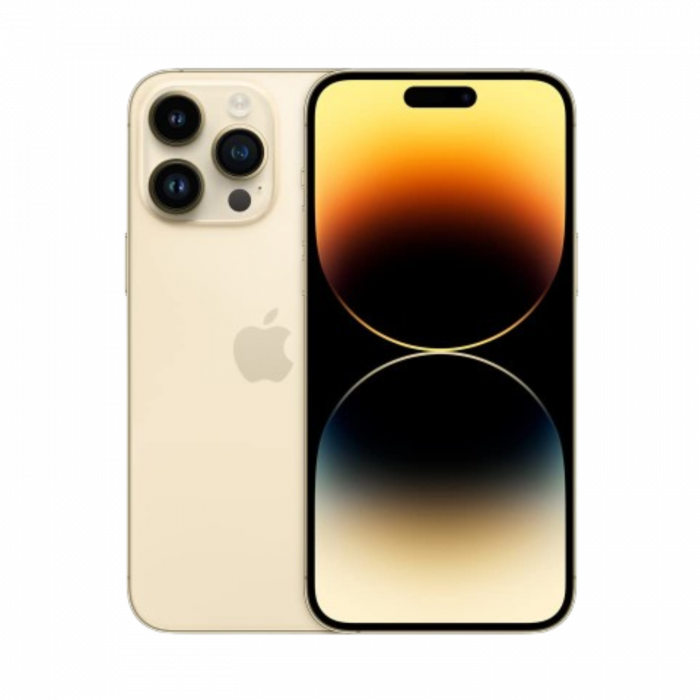

iPhone 14 Pro Max

📅 Launch

• Announced: September 7, 2022

• Released: September 16, 2022

🏗️ Body

• Dimensions: 160.7 x 77.6 x 7.9 mm (6.33 x 3.06 x 0.31 in)

• Weight: 240 g (8.47 oz) — The heaviest model in the 14 series.

• Build: Glass front (Ceramic Shield), textured matte glass back, stainless steel frame

• SIM: Nano-SIM and eSIM or Dual eSIM (US models are eSIM only)

• Resistance: IP68 dust/water resistant (up to 6m for 30 mins)

📺 Display

• Type: LTPO Super Retina XDR OLED, 120Hz, HDR10, Dolby Vision, 1000 nits (typ), 2000 nits (peak)

• Size: 6.7 inches, 110.2 cm² (~88.3% screen-to-body ratio)

• Resolution: 1290 x 2796 pixels, 19.5:9 ratio (~460 ppi density)

• Features: Dynamic Island, Always-On display, ProMotion (1Hz-120Hz)

⚙️ Platform

• OS: iOS 16, upgradable to iOS 18.4

• Chipset: Apple A16 Bionic (4 nm)

• CPU: Hexa-core (2×3.46 GHz Everest + 4×2.02 GHz Sawtooth)

• GPU: Apple GPU (5-core graphics)

💾 Memory

• Internal: 128GB, 256GB, 512GB, 1TB (6GB RAM)

• Storage Type: NVMe

📸 Main Camera

• Triple Setup + LiDAR:

  • 48 MP (Wide): f/1.8, 24mm, 1.22µm, quad-pixel, 2nd-gen sensor-shift OIS

  • 12 MP (Telephoto): f/2.8, 77mm, PDAF, OIS, 3x optical zoom

  • 12 MP (Ultrawide): f/2.2, 13mm, 120˚, 1.4µm, dual pixel PDAF

  • TOF 3D LiDAR scanner (depth)

• Features: ProRAW (48MP), Photonic Engine, Night mode portraits, Macro photography

• Video: 4K@24/25/30/60fps, ProRes, Cinematic mode (4K@30fps), Action mode

🤳 Selfie Camera

• Single: 12 MP, f/1.9, 23mm (wide), 1/3.6″, PDAF (Autofocus)

• Depth: SL 3D (depth/biometrics sensor)

• Video: 4K@24/25/30/60fps, 1080p@30/60/120fps, gyro-EIS

🔋 Battery & Charging

• Type: Li-Ion 4323 mAh, non-removable (16.68 Wh)

• Charging: * Fast charging (50% in 30 min advertised with 20W+)

  • 15W MagSafe wireless

  • 7.5W Qi wireless (Up to 15W with Qi2 firmware updates)

📡 Communications & Features

• WLAN: Wi-Fi 6, dual-band, hotspot

• Bluetooth: 5.3, A2DP, LE

• Sensors: Face ID, LiDAR, accelerometer, High-g gyro, proximity, compass, barometer

• Special: Emergency SOS via satellite, Crash Detection, Precision dual-frequency GPS

The Recap: The iPhone 14 Pro Max was the ultimate flagship of 2022. It combined the massive 6.7-inch display of the Plus model with the premium stainless steel build, the Dynamic Island, and the groundbreaking 48MP main camera. It’s basically the “everything” phone for that generation.
